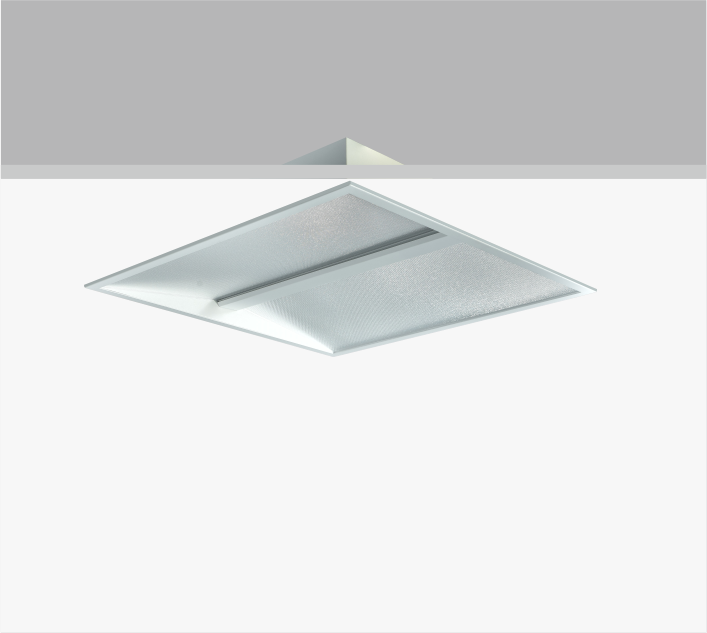

Panel light
Exquisite and simple appearance design, high luminous efficiency, low glare, and flicker-free lighting fixtures.
CCT, CRI and Efficacy can all be customized.
Application: Villas, residences, hotels, restaurants, art galleries, shopping centers, offices and other places.
parameter
| Model NO. | Power | CCT | SDCM | CRI | Luminous flux |
| 119801 | 22W | 3000K | <3 | Ra>90 | 2200LM |
| 119802 | 22W | 4000K | <3 | Ra>90 | 2230LM |
| 119803 | 22W | 5000K | <3 | Ra>90 | 2250LM |
| 119804 | 30W | 3000K | <3 | Ra>90 | 3000LM |
| 119805 | 30W | 4000K | <3 | Ra>90 | 3040LM |
| 119806 | 30W | 5000K | <3 | Ra>90 | 3080LM |
| 119807 | 36W | 3000K | <3 | Ra>90 | 3600LM |
| 119808 | 36W | 4000K | <3 | Ra>90 | 3620LM |
| 119809 | 36W | 5000K | <3 | Ra>90 | 3660LM |
Downloads Download all
Ecodesign and Energy Labelling
