Panel light-WELX Lighting

WL-1199

Product Features Size Overview Related Accessories

Commercial lighting Linear light Office lighting

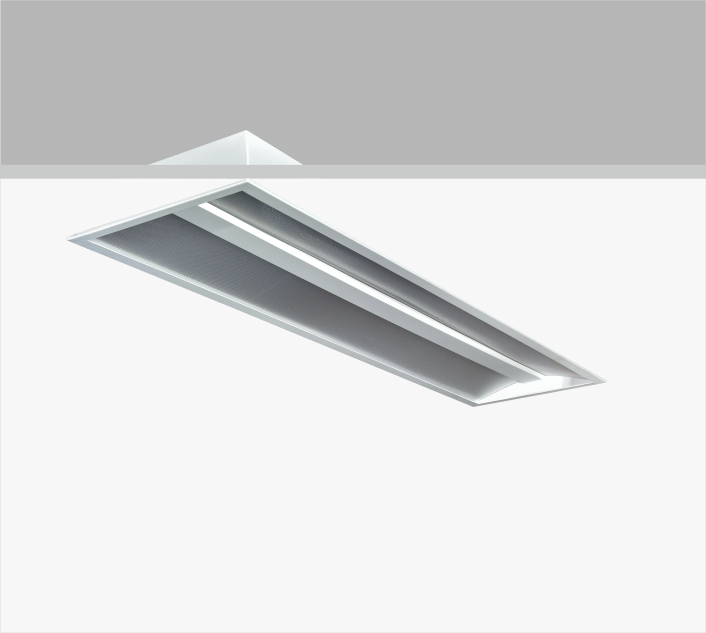

Panel light

Code: WL-1199

Exquisite and simple appearance design, high luminous efficiency, low glare, and flicker-free lighting fixtures.

CCT, CRI and Efficacy can all be customized.

Application: Villas, residences, hotels, restaurants, art galleries, shopping centers, offices and other places.

Product overview

MOUNTING	Recessed
SHAPE	Square
ORIENTATION	Fixed
IP-RATING	IP44
IK-RATING	IK03
DIMENSION	1200*600 mm
CUT-OUT	1195*595 mm
MAIN MATERIAL	Sheet metal+PC
CONTROL GEAR	Built-in
DIMMING	Non-dim
DIMMING OPTION	Dali /0-10V /Triac /Triac
OPTIONAL ACC.	-
COLOUR (housing)	White

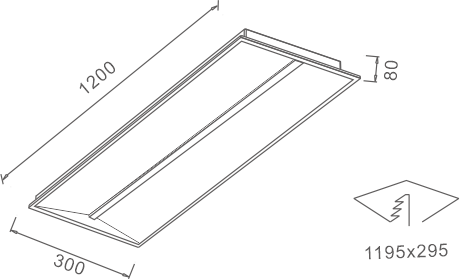

Technical drawing

Optical data

POWER	30W /55W
CCT	3000K /4000k /5000k
CRI	Ra ≥ 90
BEAM ANGLE	90°
SYSTEM FLUX	-
EFFICACY	100 lm/W
LIGHT SOURCE	LED
LED BRAND	Cree /Luminus /Philips
LED LIFE	50000h
SDCM	SDCM≤3
POWER FACTOR	0.9

parameter

Model NO.	Power	CCT	SDCM	CRI	Luminous flux
119901	30W	3000K	<3	Ra>90	3000LM
119902	30W	4000K	<3	Ra>90	3040LM
119903	30W	5000K	<3	Ra>90	3080LM
119904	55W	3000K	<3	Ra>90	5500LM
119905	55W	4000K	<3	Ra>90	5530LM
119906	55W	5000K	<3	Ra>90	5560LM

Other

MAINS VOLTAGE	AC 220-240V
OPTIONAL VOLTAGE	AC 100-240V
FREQUENCY	50/60 Hz
TEMP.	-15° C / +40° C
WARRANTY	5 Years
DRIVER OPTION(S)	Boke /Tridonic /Eaglerise

Downloads Download all

Specifications WL-1199 pdf
IES.zip zip

Photometric Files

Ecodesign and Energy Labelling
