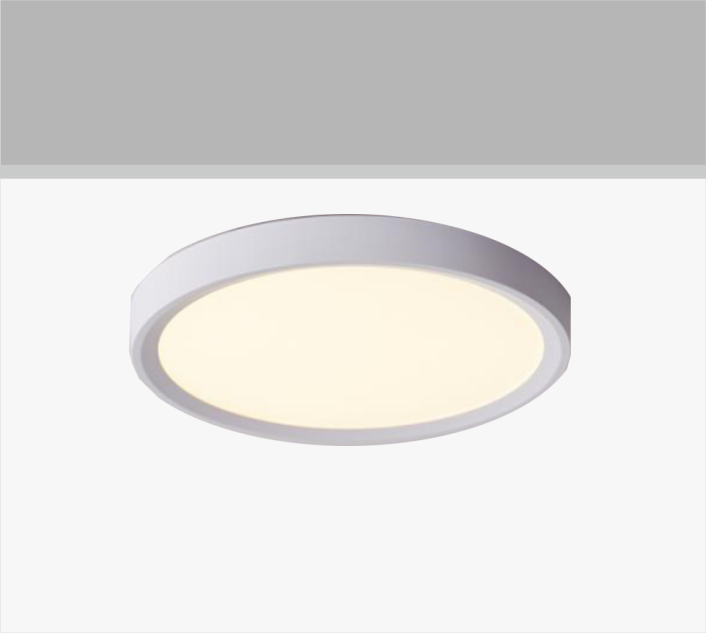

Dome light
Exquisite and simple appearance design, high luminous efficiency, low glare, and flicker-free lighting fixtures.
CCT, CRI and Efficacy can all be customized.
Application: Villas, residences, hotels, restaurants, art galleries, shopping centers, offices and other places.
parameter
| Model NO. | Power | CCT | SDCM | CRI | Luminous flux | Size(mm) |
| 603701 | 18W | 3000K | <3 | Ra>80 | 1440LM | Ф230*H23 |
| 603702 | 18W | 4000K | <3 | Ra>80 | 1440LM | Ф230*H23 |
| 603703 | 18W | 5000K | <3 | Ra>80 | 1440LM | Ф230*H23 |
| 603704 | 24W | 3000K | <3 | Ra>80 | 1920LM | Ф300*H23 |
| 603705 | 24W | 4000K | <3 | Ra>80 | 1920LM | Ф300*H23 |
| 603706 | 24W | 5000K | <3 | Ra>80 | 1920LM | Ф300*H23 |
| 603707 | 32W | 3000K | <3 | Ra>80 | 2560LM | Ф300*H23 |
| 603708 | 32W | 4000K | <3 | Ra>80 | 2560LM | Ф300*H23 |
| 603709 | 32W | 5000K | <3 | Ra>80 | 2560LM | Ф300*H23 |
| 603710 | 40W | 3000K | <3 | Ra>80 | 3200LM | Ф500*H25 |
| 603711 | 40W | 4000K | <3 | Ra>80 | 3200LM | Ф500*H25 |
| 603712 | 40W | 5000K | <3 | Ra>80 | 3200LM | Ф500*H25 |
| 603713 | 50W | 3000K | <3 | Ra>80 | 4000LM | Ф600*H27 |
| 603714 | 50W | 4000K | <3 | Ra>80 | 4000LM | Ф600*H27 |
| 603715 | 50W | 5000K | <3 | Ra>80 | 4000LM | Ф600*H27 |
| 603716 | 80W | 3000K | <3 | Ra>80 | 6400LM | Ф800*H27 |
| 603717 | 80W | 4000K | <3 | Ra>80 | 6400LM | Ф800*H27 |
| 603718 | 80W | 5000K | <3 | Ra>80 | 6400LM | Ф800*H27 |
