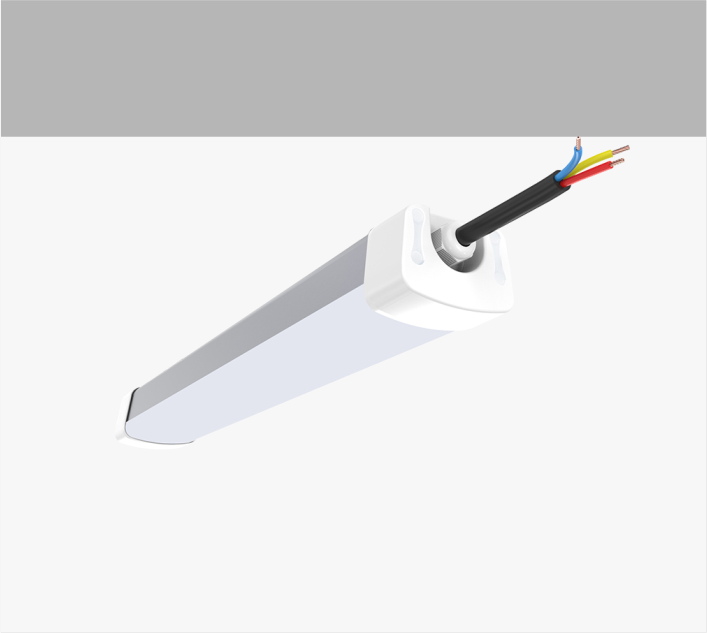

Tri-proof light
Exquisite and simple appearance design, high luminous efficiency, low glare, and flicker-free lighting fixtures.
CCT, CRI and Efficacy can all be customized.
Application: Villas, residences, hotels, restaurants, art galleries, shopping centers, offices and other places.
parameter
| Model NO. | Power | CCT | SDCM | CRI | Luminous flux | Size(mm) |
| 749001 | 20W | 3000K | <3 | Ra>80 | 3000LM | L600*W90*H74 |
| 749002 | 20W | 4000K | <3 | Ra>80 | 3000LM | L600*W90*H74 |
| 749003 | 20W | 6000K | <3 | Ra>80 | 3000LM | L600*W90*H74 |
| 749004 | 30W | 3000K | <3 | Ra>80 | 4500LM | L600*W90*H74 |
| 749005 | 30W | 4000K | <3 | Ra>80 | 4500LM | L600*W90*H74 |
| 749006 | 30W | 6000K | <3 | Ra>80 | 4500LM | L600*W90*H74 |
| 749007 | 40W | 3000K | <3 | Ra>80 | 6000LM | L1200*W90*H74 |
| 749008 | 40W | 4000K | <3 | Ra>80 | 6000LM | L1200*W90*H74 |
| 749009 | 40W | 6000K | <3 | Ra>80 | 6000LM | L1200*W90*H74 |
| 749010 | 50W | 3000K | <3 | Ra>80 | 7500LM | L1200*W90*H74 |
| 749011 | 50W | 4000K | <3 | Ra>80 | 7500LM | L1200*W90*H74 |
| 749012 | 50W | 6000K | <3 | Ra>80 | 7500LM | L1200*W90*H74 |
| 749013 | 60W | 3000K | <3 | Ra>80 | 9000LM | L1500*W90*H74 |
| 749014 | 60W | 4000K | <3 | Ra>80 | 9000LM | L1500*W90*H74 |
| 749015 | 60W | 6000K | <3 | Ra>80 | 9000LM | L1500*W90*H74 |
| 749016 | 80W | 3000K | <3 | Ra>80 | 12000LM | L1500*W90*H74 |
| 749017 | 80W | 4000K | <3 | Ra>80 | 12000LM | L1500*W90*H74 |
| 749018 | 80W | 6000K | <3 | Ra>80 | 12000LM | L1500*W90*H74 |
