WL-8613B
Product Features Size Overview Related Accessories
Commercial lighting Linear light Office lighting

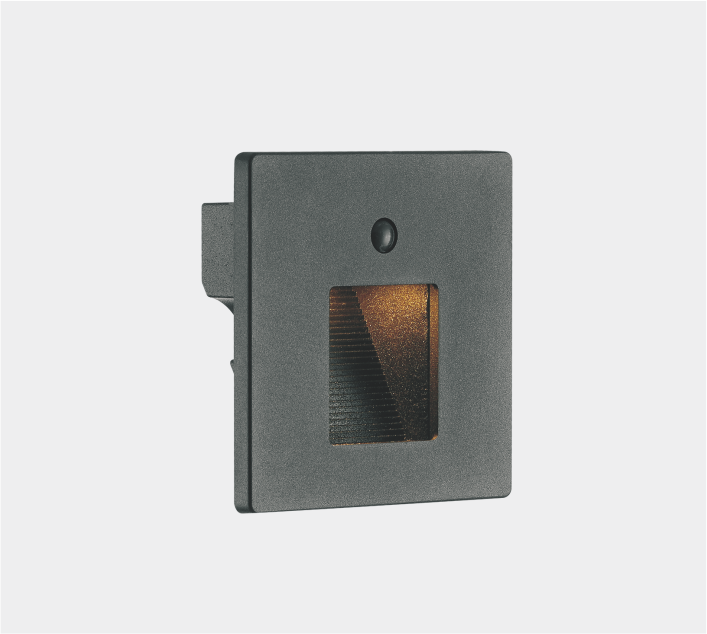

Recessed wall light

Code: WL-8613B

Exquisite and simple appearance design, high luminous efficiency, low glare, and flicker-free lighting fixtures.

CCT, CRI and Efficacy can all be customized.

Application: Villas, residences, hotels, restaurants, art galleries, shopping centers, offices and other places.


Product overview

MOUNTING Recessed
SHAPE Square
ORIENTATION Fixed
IP-RATING IP20
IK-RATING IK03
DIMENSION 90*90 mm
CUT-OUT 86*86*35 mm
MAIN MATERIAL Aluminm ADC12
CONTROL GEAR External
DIMMING Non-dim
DIMMING OPTION Dali /0-10V /Triac /Triac
OPTIONAL ACC. -
COLOUR (housing) Black /white / Silver /Gold
Other -

Technical drawing

  • 3.png

Optical data

POWER 3W
CCT 3000K /4000k /5000k
CRI Ra ≥ 80
BEAM ANGLE -
SYSTEM FLUX 210 LM
EFFICACY 120 lm/W
LIGHT SOURCE LED
LED BRAND Cree /Luminus /Philips
LED LIFE 50000h
SDCM SDCM≤3
POWER FACTOR 0.9

Other

MAINS VOLTAGE AC 220-240V
OPTIONAL VOLTAGE AC 100-240V
FREQUENCY 50/60 Hz
TEMP. -15° C / +40° C
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Ecodesign and Energy Labelling
