WL-LL1
Product Features Size Overview Related Accessories
Commercial lighting Recessed luminaires Decorative lighting

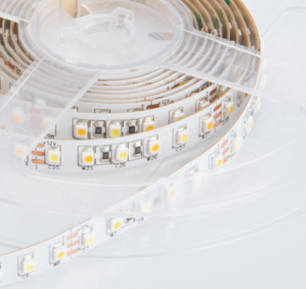

Led stripe

Code: WL-LL1

Perfect light color, advanced production technology, and high-quality rectifier bridge safeguard your lighting.

CCT, CRI and Efficacy can all be customized.

Plug and play, according to the length you choose, cut off the light strip, connect the power cord, and you can use, install or quickly replace it.


Product overview

MOUNTING Surface mount
SHAPE linear
ORIENTATION Fixed
IP-RATING IP20 /IP65
IK-RATING IK03
DIMENSION -
MAIN MATERIAL Circuit board
CONTROL GEAR External
DIMMING Non-dim
DIMMING OPTION Dali /0-10V /Triac /Triac
OPTIONAL ACC. -
COLOUR (housing) Black /white / Silver /Gold
Other -

Optical data

POWER 7.2W /14W /15W
CCT 3000K /4000k /6500k
CRI Ra ≥ 80
BEAM ANGLE 110°
SYSTEM FLUX -
EFFICACY 60 lm/W
LIGHT SOURCE LED
LED BRAND Cree /Luminus /Philips
LED LIFE 50000h
SDCM SDCM≤3
POWER FACTOR 0.9

parameter

Model NO.Light beadsCCT
LL10112V/24V 2835 Single  color, 7.2W/m,60pcs/m3000K/4000K/6000K
LL10212V/24V 2835 Single  color, 14W/m,120pcs/m3000K/4000K/6000K
LL10312V/24V 5050 RGB,  15W/m,60pcs/m3000K/4000K/6000K
LL10424V 5050 RGB+W,  15W/m,60pcs/m3000K/4000K/6000K

Other

MAINS VOLTAGE AC 220-240V
OPTIONAL VOLTAGE AC 100-240V
FREQUENCY 50/60 Hz
TEMP. -15° C / +40° C
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Ecodesign and Energy Labelling
