Window light-WELX Lighting

WL-T60

Product Features Size Overview Related Accessories

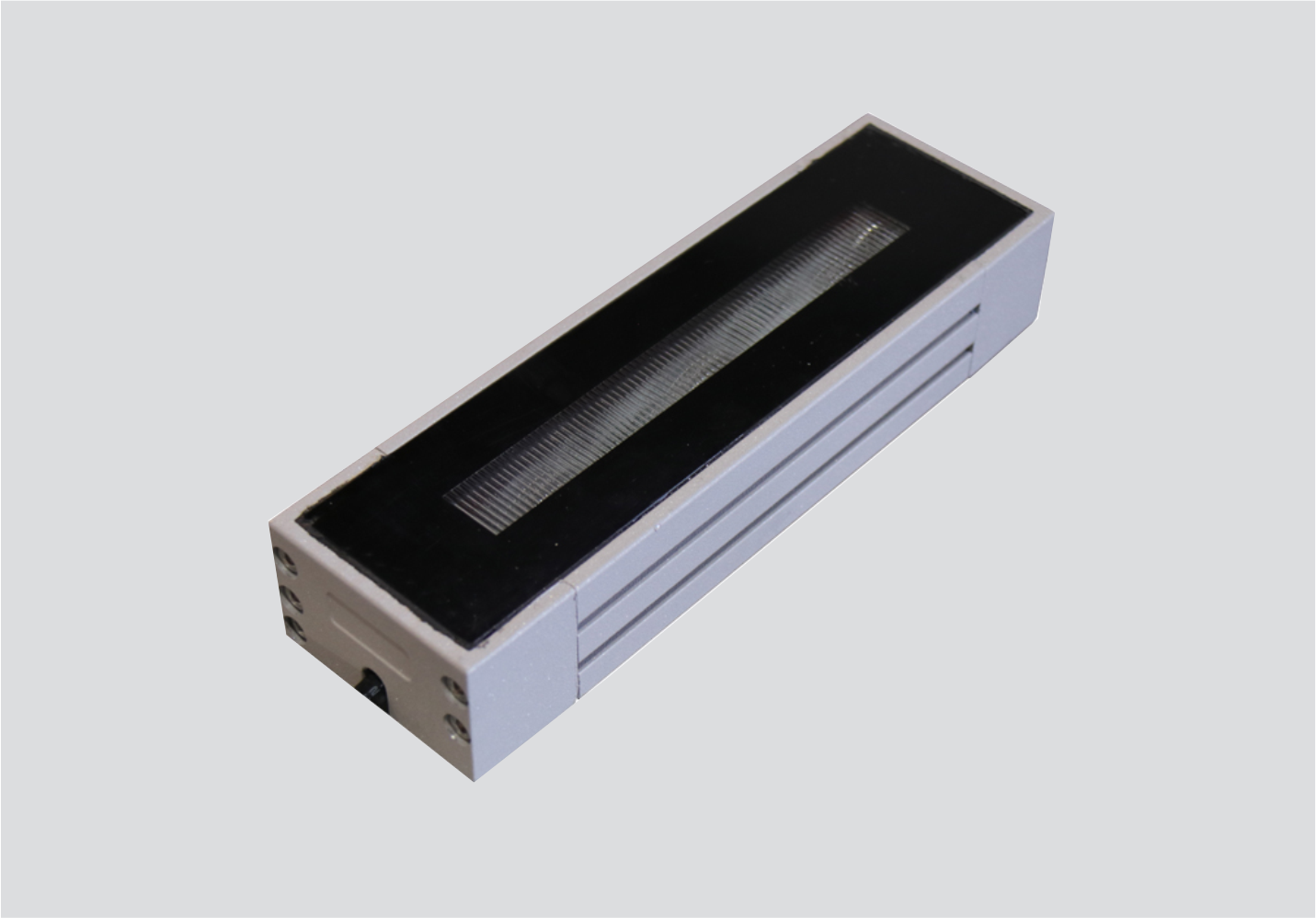

Window light

Code: WL-T60

Small and delicate appearance, good concealment. High-density die-cast aluminum lamp body, toughened glasssurface, full structural waterproof without pouring glue process.

Monochromatic/RGB triad-/RGBW four-in-one, support DMXS12 control system, automatic addressing. Simple wiring.so that the installation and maintenance of lamps more convenient and convenient.

Product overview

MOUNTING	Surface mount
ORIENTATION	Fixed
IP-RATING	IP66
IK-RATING	IK05
DIMENSION	3006037.5mm
MAIN MATERIAL	Die-cast aluminum
CONTROL METHOD	NO-OFF／DMX512
OPTIONAL ACC.	-
COLOUR (housing)	Aluminum natural color /grey

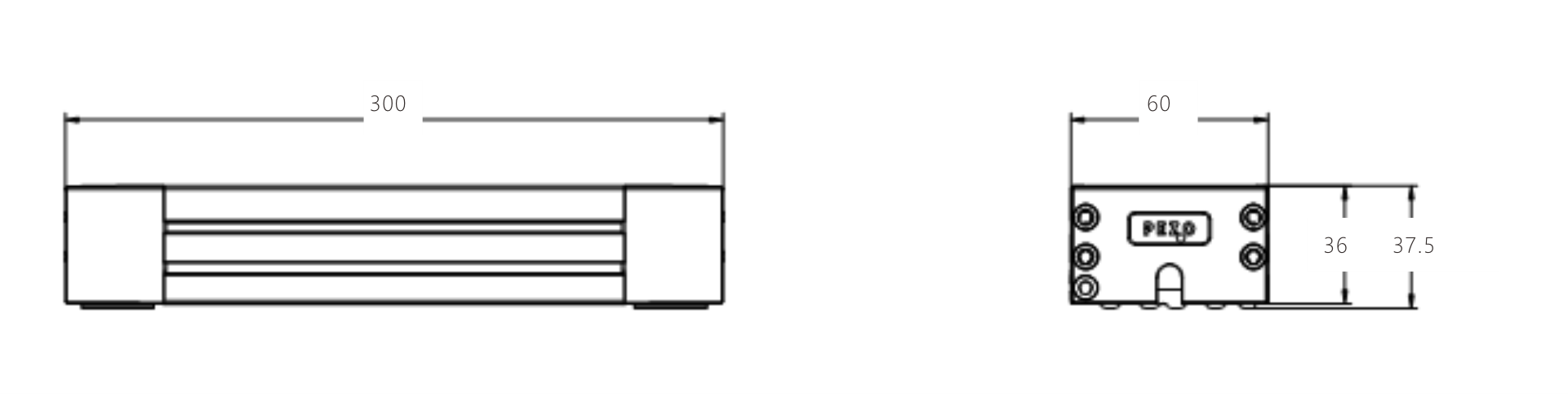

Technical drawing

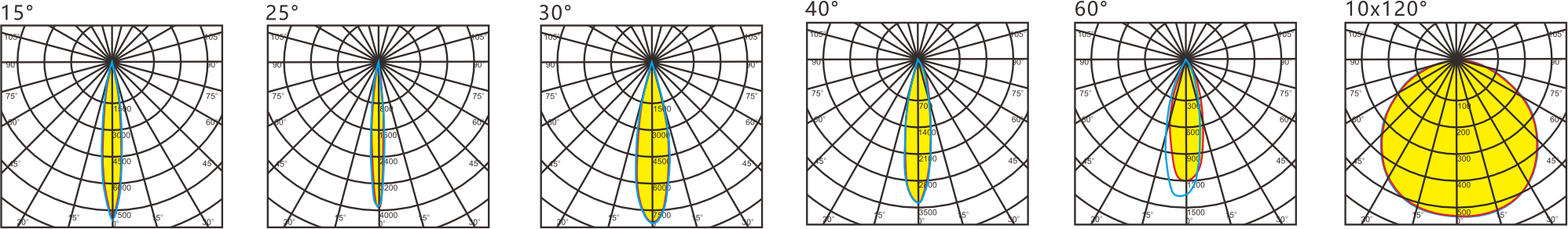

Optical data

POWER	9W /12W /15W
CCT	2200-5000K /RGB /RGBW
BEAM ANGLE	15°/25°/30°/40°/60°
LIGHT SOURCE	LED
LED BRAND	Cree /Osram /Philips
LED LIFE	50000h
POWER FACTOR	0.9

parameter

Model NO.	Power	Light Color	Dimension
WL-T6009	3*3W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	3006037.5mm
WL-T6012	4*3W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	3006037.5mm
WL-T6015	5*3W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	3006037.5mm
