WL-T65
Product Features Size Overview Related Accessories
Commercial lighting Recessed luminaires Outdoor landscape lighting

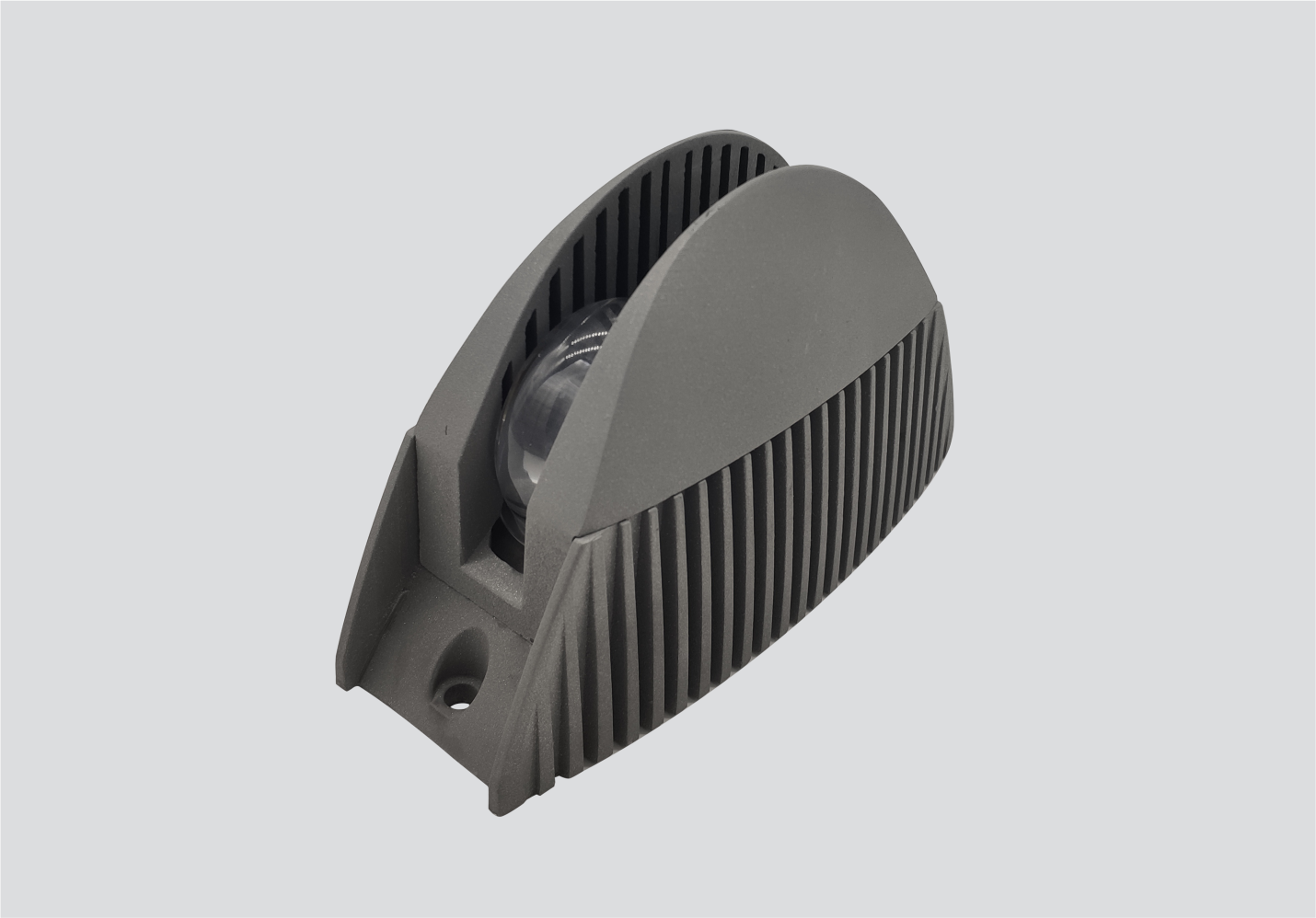

Window light

Code: WL-T65

Small and delicate appearance, good concealment. High-density die-cast aluminum lamp body, toughened glasssurface, full structural waterproof without pouring glue process.

Monochromatic/RGB triad-/RGBW four-in-one, support DMXS12 control system, automatic addressing. Simple wiring.so that the installation and maintenance of lamps more convenient and convenient.




Product overview

MOUNTING Surface mount
ORIENTATION Fixed
IP-RATING IP66
IK-RATING IK05
DIMENSION 155mm*65mm*95mm
MAIN MATERIAL Die-cast aluminum
CONTROL METHOD NO-OFF／DMX512
OPTIONAL ACC. -
COLOUR (housing) Aluminum natural color /grey

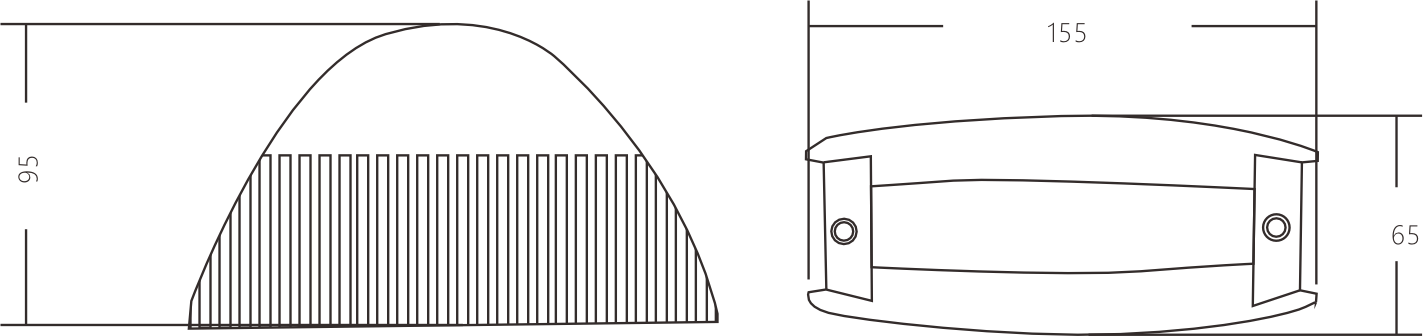

Technical drawing

  • 3.png

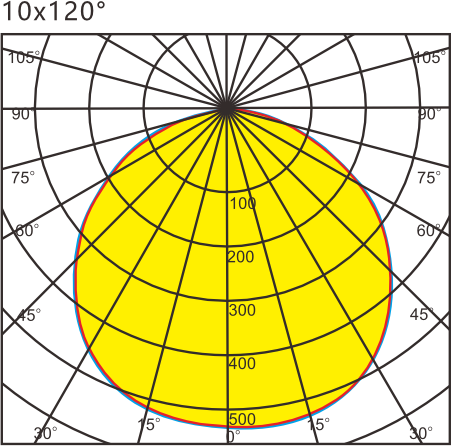

Optical data

POWER 16W
CCT 2200-5000K /RGB /RGBW
BEAM ANGLE 10*120°/10*180°
LIGHT SOURCE LED
LED BRAND Cree /Osram /Philips
LED LIFE 50000h
POWER FACTOR 0.9

  • 4.png

parameter


Model NO.PowerLight ColorDimension
WL-T65168*2W2200K /2700K /3000K /4000K  /5000K /RGB /RGBW155mm*65mm*95mm


Other

TEMP. -40° C / +40° C
OPTIONAL VOLTAGE AC 100-240V
MAINS VOLTAGE 24V DC
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Downloads Download all

Photometric Files

Ecodesign and Energy Labelling
