WL-F33

Product Features Size Overview Related Accessories

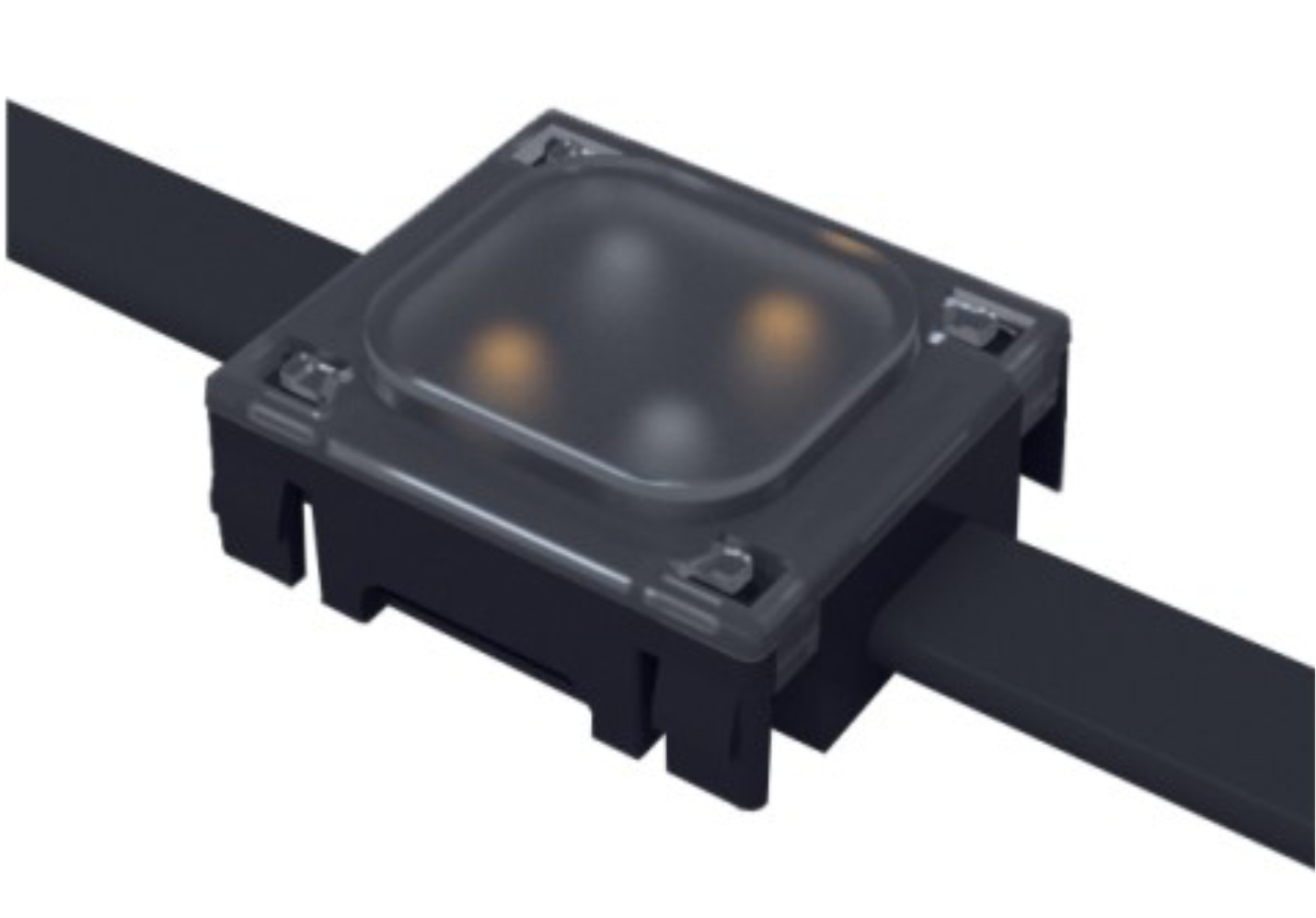

Point light source

Code: WL-F33

Compact and exquisite, UV resistant polycarbonate with strong resistance, long lifespan, and resistance to aging and yellowing.

Monochromatic/RGB triad-/RGBW four-in-one, support DMXS12 control system, automatic addressing. Simple wiring.so that the installation and maintenance of lamps more convenient and convenient.

Product overview

MOUNTING	Surface mount
ORIENTATION	Fixed
IP-RATING	IP66
IK-RATING	IK05
DIMENSION	38mm33mm15mm
MAIN MATERIAL	Polycarbonate
CONTROL METHOD	NO-OFF／DMX512
OPTIONAL ACC.	-
COLOUR (housing)	Black

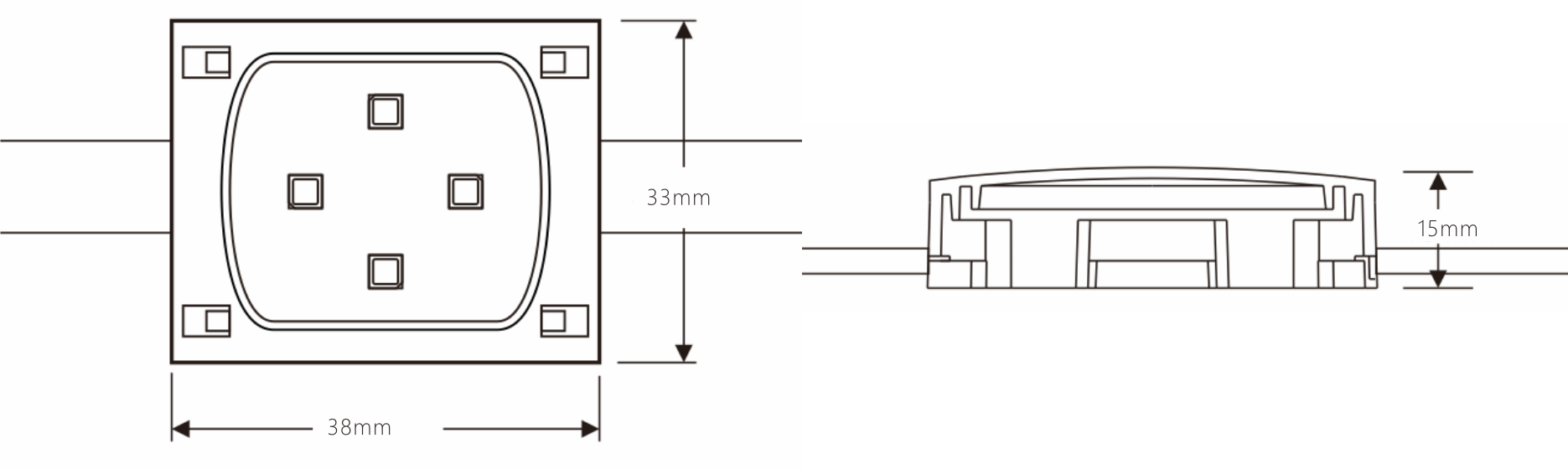

Technical drawing

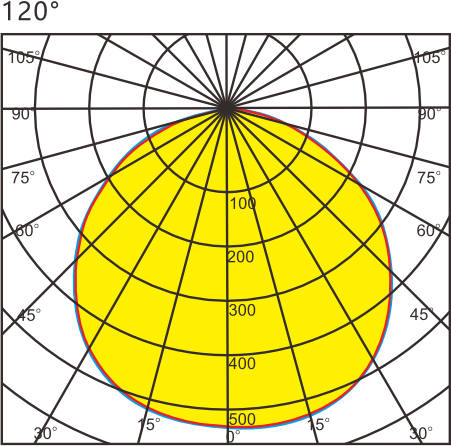

Optical data

POWER	1W /1.2W /1.5W /1.8W
CCT	2200-5000K /RGB /RGBW
BEAM ANGLE	120°
LIGHT SOURCE	LED
LED BRAND	Cree /Osram /Philips
LED LIFE	50000h
POWER FACTOR	0.9

parameter

Model NO.	Power	Light Color	Dimension
WL-F3301	4*0.25W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	38mm33mm15mm
WL-F3302	4*0.3W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	38mm33mm15mm
WL-F3303	4*0.36W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	38mm33mm15mm
WL-F3304	6*0.3W	2200K /2700K /3000K /4000K /5000K /RGB /RGBW	38mm33mm15mm
