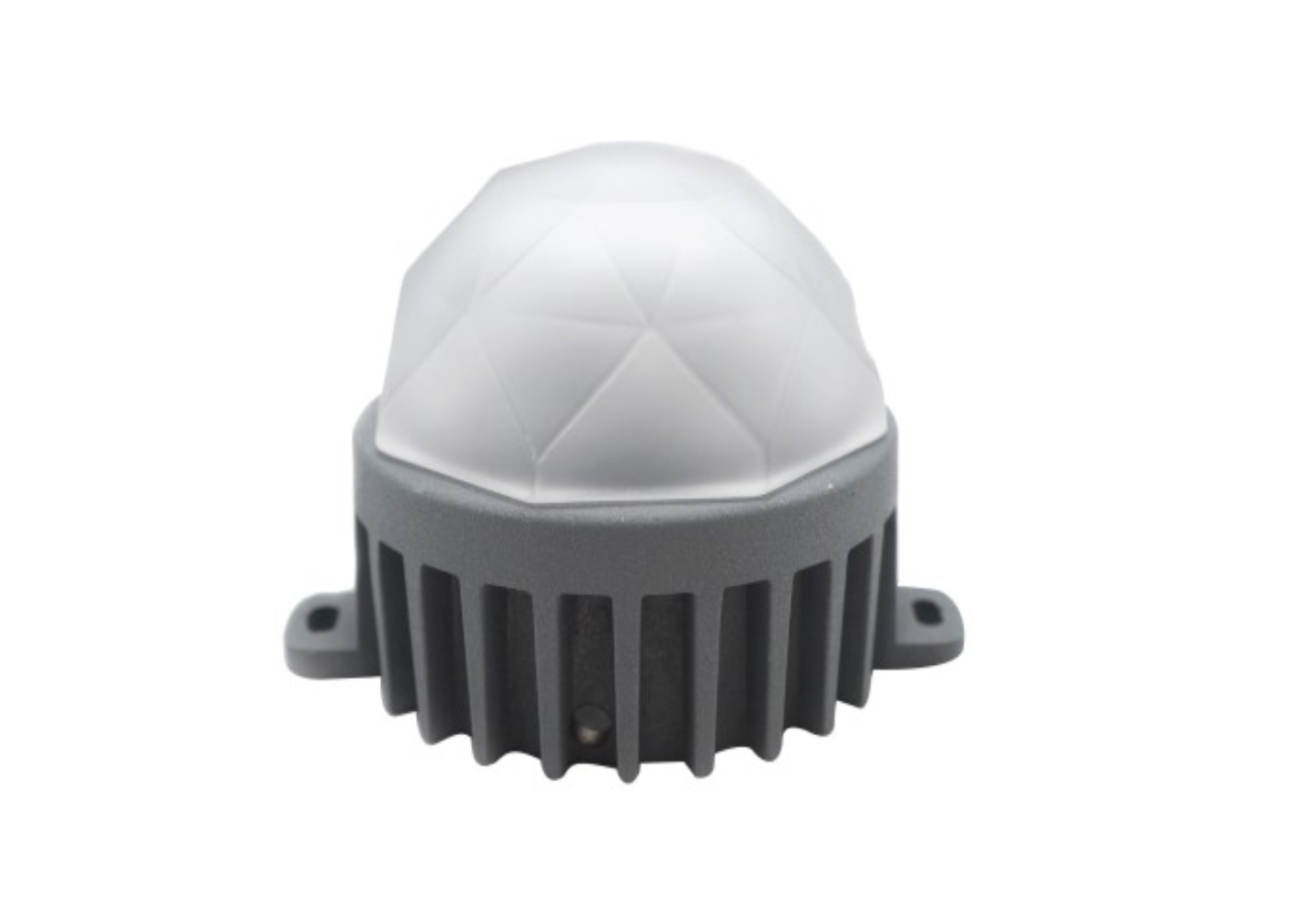

WL-Y85
Product Features Size Overview Related Accessories
Commercial lighting Recessed luminaires Outdoor landscape lighting

Point light source

Code: WL-Y85

Compact and exquisite, UV resistant polycarbonate with strong resistance, long lifespan, and resistance to aging and yellowing.

Monochromatic/RGB triad-/RGBW four-in-one, support DMXS12 control system, automatic addressing. Simple wiring.so that the installation and maintenance of lamps more convenient and convenient.




Product overview

MOUNTING Surface mount
ORIENTATION Fixed
IP-RATING IP66
IK-RATING IK05
DIMENSION 85mm*77mm
MAIN MATERIAL Polycarbonate
CONTROL METHOD NO-OFF／DMX512
OPTIONAL ACC. -
COLOUR (housing) Black

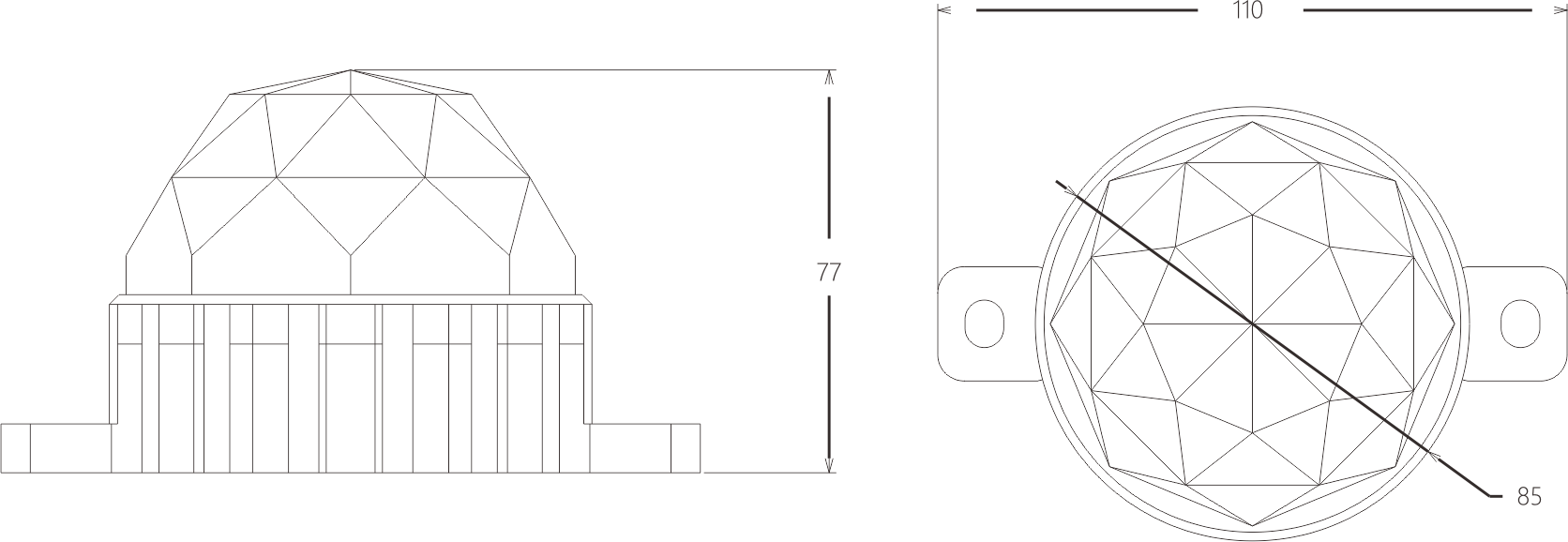

Technical drawing

  • 3.png

Optical data

POWER 5.4W
CCT 2200-5000K /RGB /RGBW
BEAM ANGLE 120°
LIGHT SOURCE LED
LED BRAND Cree /Osram /Philips
LED LIFE 50000h
POWER FACTOR 0.9

  • 4（配光图统一用这个）.png

parameter

Model NO.PowerLight ColorDimension
WL-Y850118*0.3W2200K /2700K /3000K /4000K  /5000K /RGB /RGBW85mm*77mm


Other

TEMP. -40° C / +40° C
OPTIONAL VOLTAGE AC 100-240V
MAINS VOLTAGE 24V DC
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Downloads Download all

Photometric Files

Ecodesign and Energy Labelling
