Industrial lighting-WELX Lighting

WL-HBF

Product Features Size Overview Related Accessories

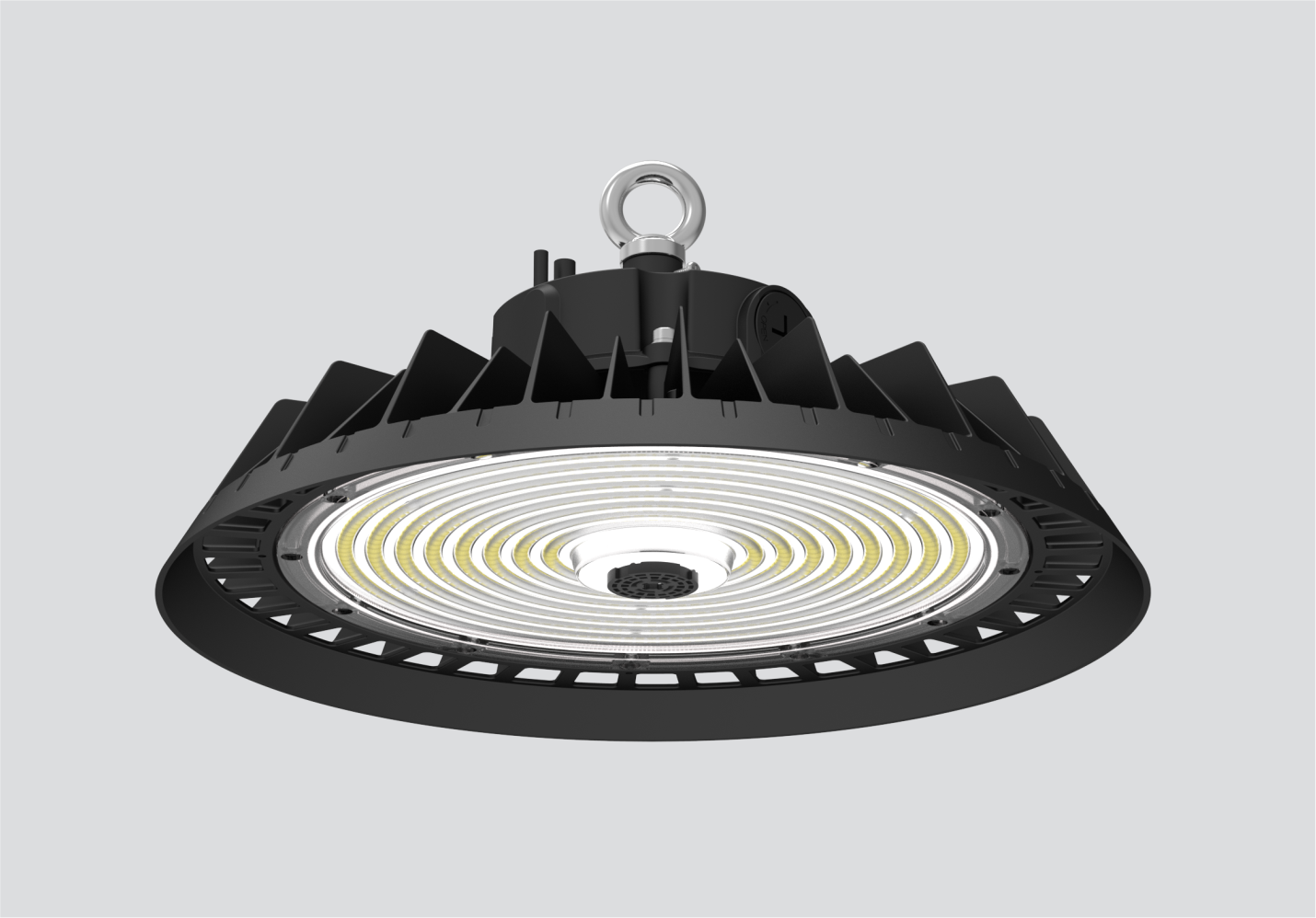

Industrial lighting

Code: WL-HBF

Integrated structure design, highly efficient and energy-saving, sturdy and durable. The surface is treated with high-tech spraying technology, which is wear-resistant, corrosion-resistant, waterproof and dustproof, suitable for all kindsof harsh environments.

With a variety of optional sensing module functions, according to the environment for networking and single lampdimming, networking constant illumination, microwave induction, can further save energy costs.

Product overview

MOUNTING	Hoisting
ORIENTATION	Fixed
IP-RATING	IP67
IK-RATING	IK05
DIMENSION	-
MAIN MATERIAL	Die-cast aluminum
CONTROL METHOD	NO-OFF
OPTIONAL ACC.	Compatible withmicrowave induction
COLOUR (housing)	Black

Optical data

POWER	60-500W
CCT	3000-6500K

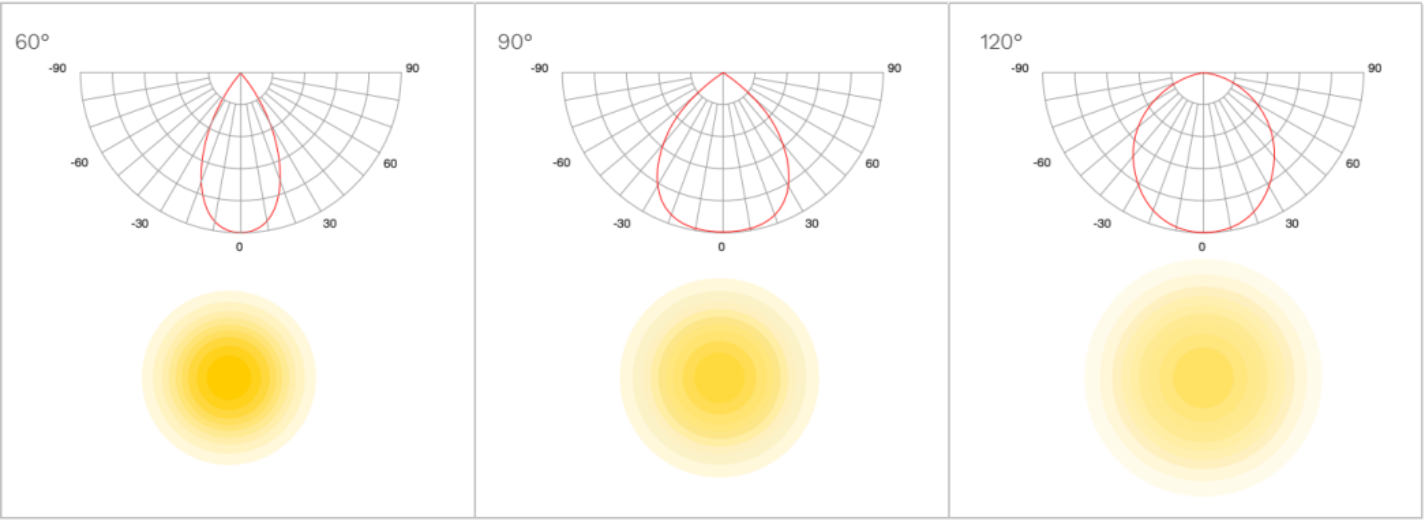

BEAM ANGLE	60° /90° /120°
LIGHT SOURCE	LED
LED BRAND	Cree /Osram /Philips
LED LIFE	50000h
POWER FACTOR	0.9

parameter

Model NO.	Power	Light Color	Light efficiency	Dimension
WL-HBF60	50	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF100	100	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF150	150	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF200	200	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF240	240	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF300	300	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF400	400	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
WL-HBF500	500	3000K /4000K /5700K /6500K	150 LM/W	Ф200*H145mm
