WL-O7
Product Features Size Overview Related Accessories
Commercial lighting Recessed luminaires Industrial lighting

Sports lighting

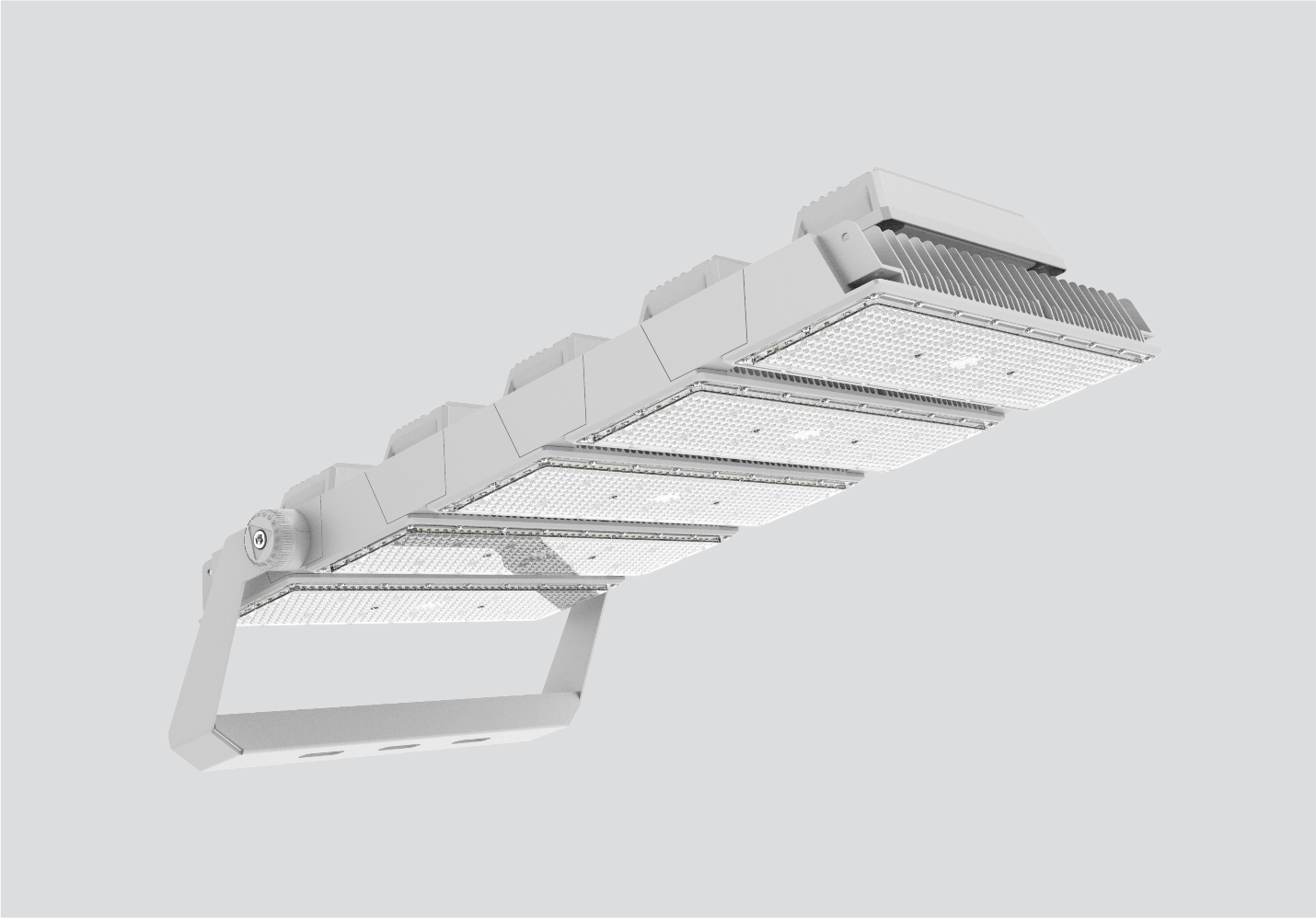

Code: WL-O7

The design is simple and generous,exquisite and beautiful. Structural waterproof technology.

Modular overlay design allows you to quickly assemble the power you want according to project requirements.




Product overview

MOUNTING Surface mount
ORIENTATION Fixed
IP-RATING IP66
IK-RATING IK05
DIMENSION -
MAIN MATERIAL Die-cast aluminum
CONTROL METHOD NO-OFF/DMX/Dali/0-10V
OPTIONAL ACC. -
COLOUR (housing) Aluminum natural color /grey

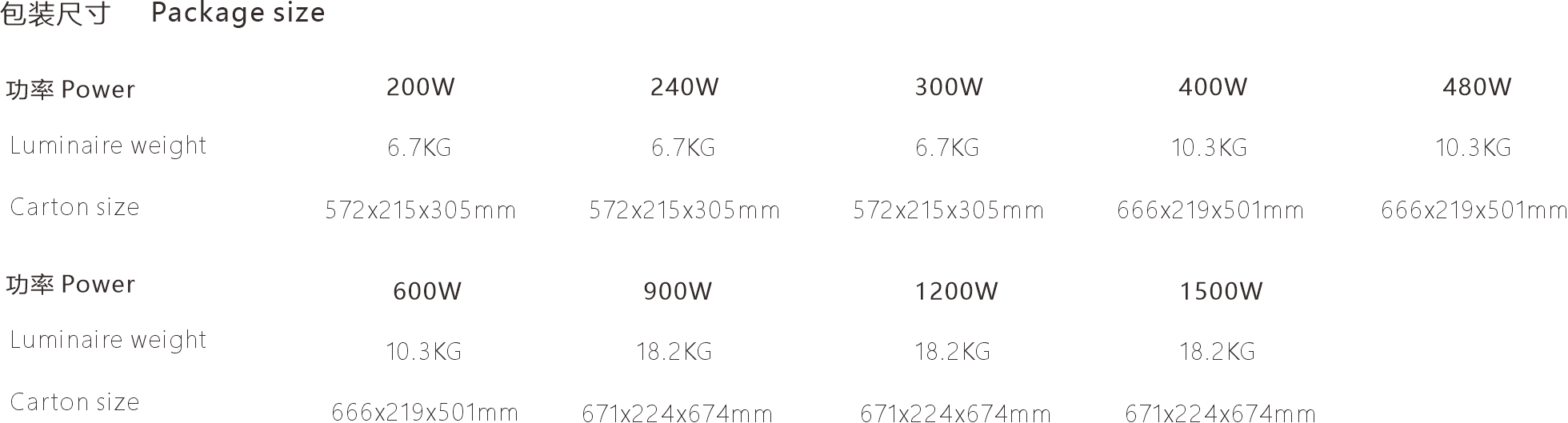

Technical drawing

  • 3.png

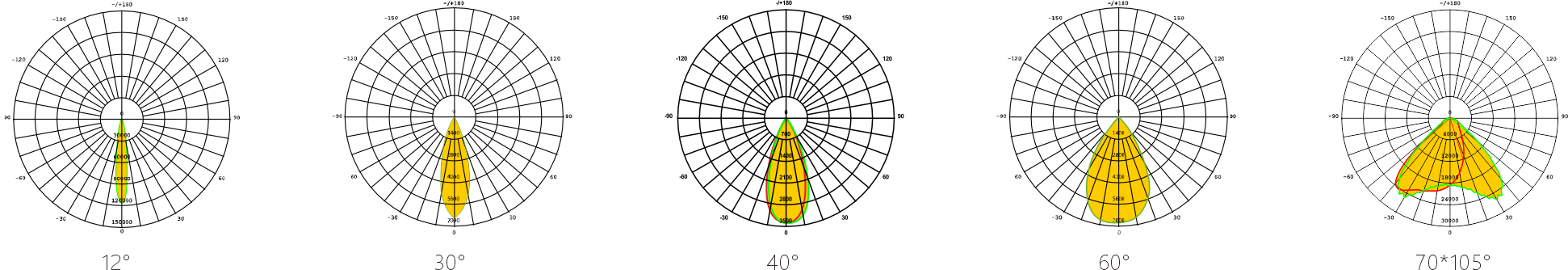

Optical data

POWER 200-1500W
CCT 3000-6500K
BEAM ANGLE 12° /25° /40° /60° /70*105°
LIGHT SOURCE LED
LED BRAND Cree /Osram /Philips
LED LIFE 50000h
POWER FACTOR 0.9

  • 4.png

parameter

Model NO.PowerLight ColorDimension
WL-O72002003000K /4000K  /5700K /6500K150-170 LM/W
WL-O72402403000K /4000K  /5700K /6500K150-170 LM/W
WL-O73003003000K /4000K  /5700K /6500K150-170 LM/W
WL-O74004003000K /4000K  /5700K /6500K150-170 LM/W
WL-O74804803000K /4000K  /5700K /6500K150-170 LM/W
WL-O76006003000K /4000K  /5700K /6500K150-170 LM/W
WL-O79009003000K /4000K  /5700K /6500K150-170 LM/W
WL-O7120012003000K /4000K  /5700K /6500K150-170 LM/W
WL-O7150015003000K /4000K  /5700K /6500K150-170 LM/W


Other

OPTIONAL VOLTAGE -
TEMP. -40° C / +40° C
MAINS VOLTAGE 24V DC
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Downloads Download all

Photometric Files

Ecodesign and Energy Labelling
