Road lighting-WELX Lighting

WL-R4

Product Features Size Overview Related Accessories

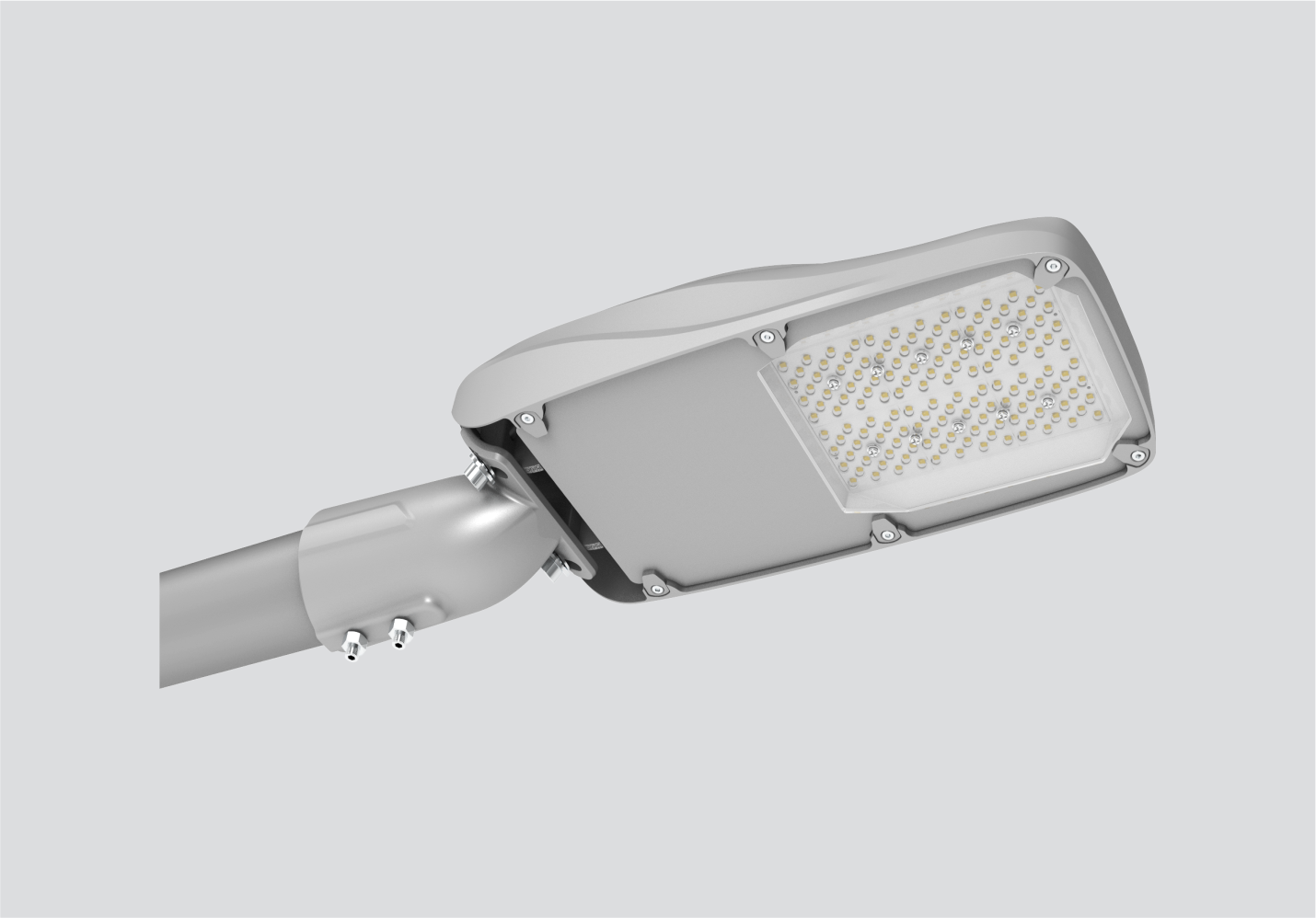

Road lighting

Code: WL-R4

The sleek and classic exterior design prevents dust and rain from collecting, and the smooth surface allows rainwaterto quickly wash the surface of the lamp, thereby extending the life of the lamp, with IP66 protection.

The lamp body has an auxiliary level for quick and accurate installation, and an optional intelligent lamp control unit.

Product overview

MOUNTING	Hoisting
ORIENTATION	Fixed
IP-RATING	IP66
IK-RATING	IK05
MAIN MATERIAL	Die-cast aluminum
CONTROL METHOD	NO-OFF
OPTIONAL ACC.	ZHAGA/LIGHT SENSOR/LORA
COLOUR (housing)	Aluminum natural color /grey

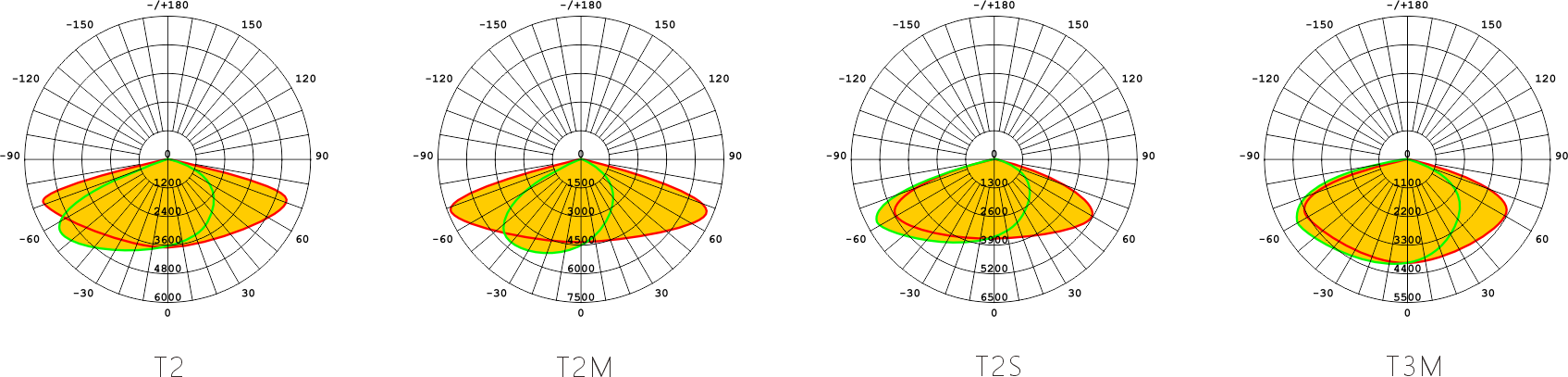

Optical data

POWER	30-180W
CCT	2200-6500K
BEAM ANGLE	TIM/T2S/T2M-B/T2M-CT2M-D/T2M-E
LIGHT SOURCE	LED
LED BRAND	Cree /Osram /Philips
LED LIFE	50000h
POWER FACTOR	0.9

parameter

Model NO.	Power	Light Color	Light efficiency
WL-R4030	30	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R4040	40	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R4050	50	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R4060	60	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R4075	75	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R4080	80	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R4090	90	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R40100	100	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R40120	120	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R40150	150	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
WL-R40180	180	2200K /3000K /4000K /5700K /6500K	150-170 LM/W
