WL-M19
Product Features Size Overview Related Accessories
Commercial lighting Recessed luminaires Outdoor landscape lighting

Landscape lighting series

Code: WL-M19

The design is simple and generous, exquisite and beautiful. Structural waterproof technology.

Suitable for parks and gardens,neighborhoods,villas,citysquares,pedestrian streets, scenic spots or resorts andothervarious scenes;




Product overview

MOUNTING Surface mount
ORIENTATION Fixed
IP-RATING IP54
IK-RATING IK05
DIMENSION -
MAIN MATERIAL Aluminm ADC12
CONTROL METHOD NO-OFF
OPTIONAL ACC. -
COLOUR (housing) Black

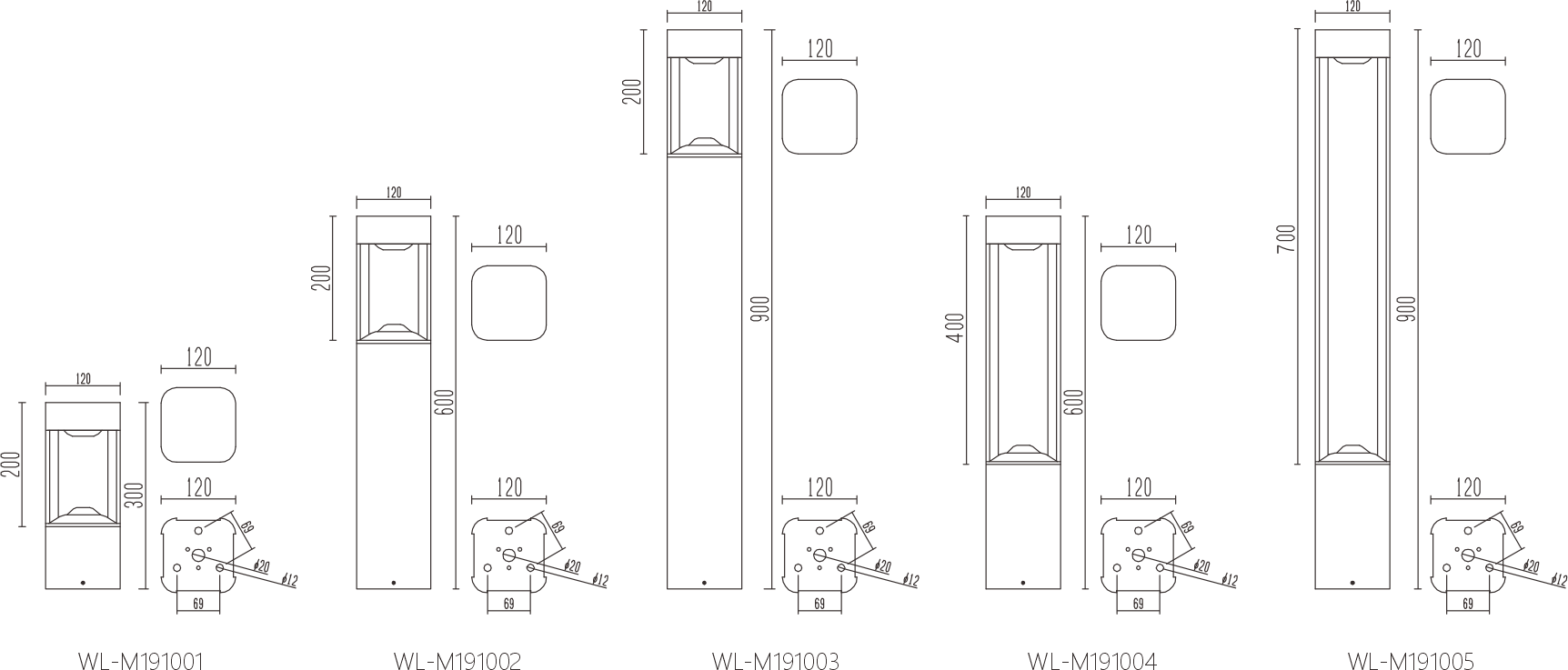

Technical drawing

  • 3.png

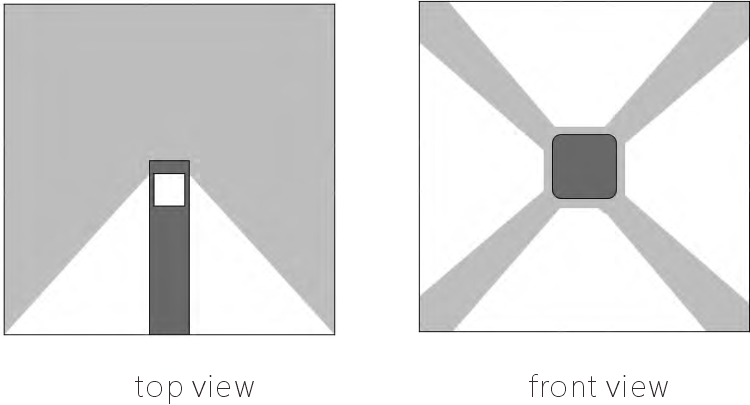

Optical data

POWER 10W
CCT 2700-5000K
BEAM ANGLE -
LIGHT SOURCE LED
LED BRAND Cree /Osram /Philips
LED LIFE 50000h
POWER FACTOR 0.9

  • 4.png

parameter

Model NO.PowerLight Colorluminous fluxDimension
WL-M19100110W2700K /3000K /4000K  /5000K700A120*B200*C300mm
WL-M19100210W2700K /3000K /4000K  /5000K700A120*B200*C300mm
WL-M19100310W2700K /3000K /4000K  /5000K700A120*B200*C300mm
WL-M19100410W2700K /3000K /4000K  /5000K700A120*B200*C300mm
WL-M19100510W2700K /3000K /4000K  /5000K700A120*B200*C300mm


Other

OPTIONAL VOLTAGE -
TEMP. -40° C / +40° C
MAINS VOLTAGE 24V DC
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Ecodesign and Energy Labelling
