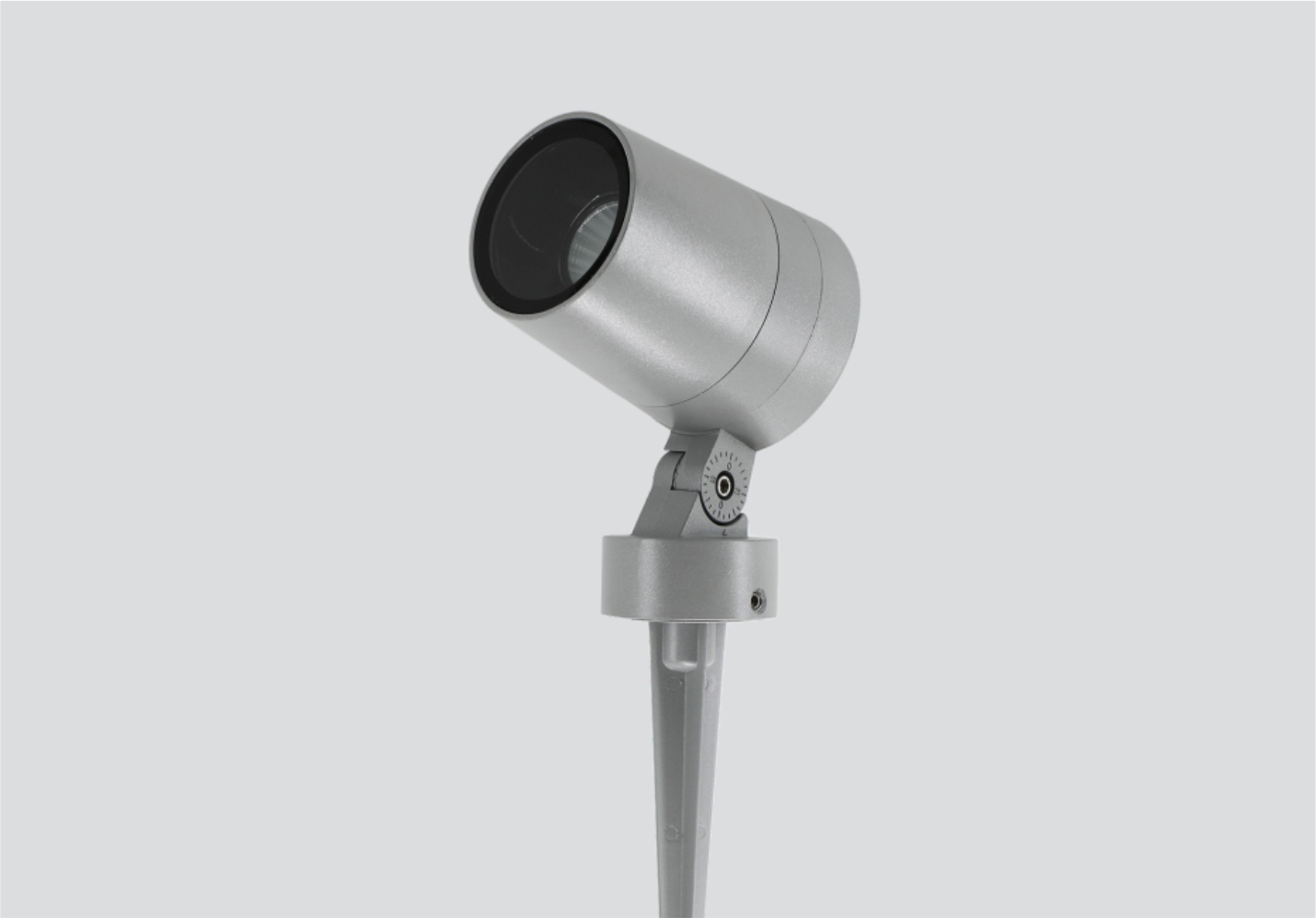

WL-KC
Product Features Size Overview Related Accessories
Commercial lighting Recessed luminaires Outdoor landscape lighting

Landscape lighting series

Code: WL-KC

The design is simple and generous, exquisite and beautiful. Structural waterproof technology.

Suitable for parks and gardens,neighborhoods,villas,citysquares, pedestrian streets,scenic spots or resorts andothervarious scenes;


Product overview

MOUNTING Surface mount
ORIENTATION Adjustable
IP-RATING IP65
IK-RATING IK05
DIMENSION -
MAIN MATERIAL Die-cast aluminum
CONTROL METHOD NO-OFF
OPTIONAL ACC. Anti-glare light shield
COLOUR (housing) Aluminum natural color /grey

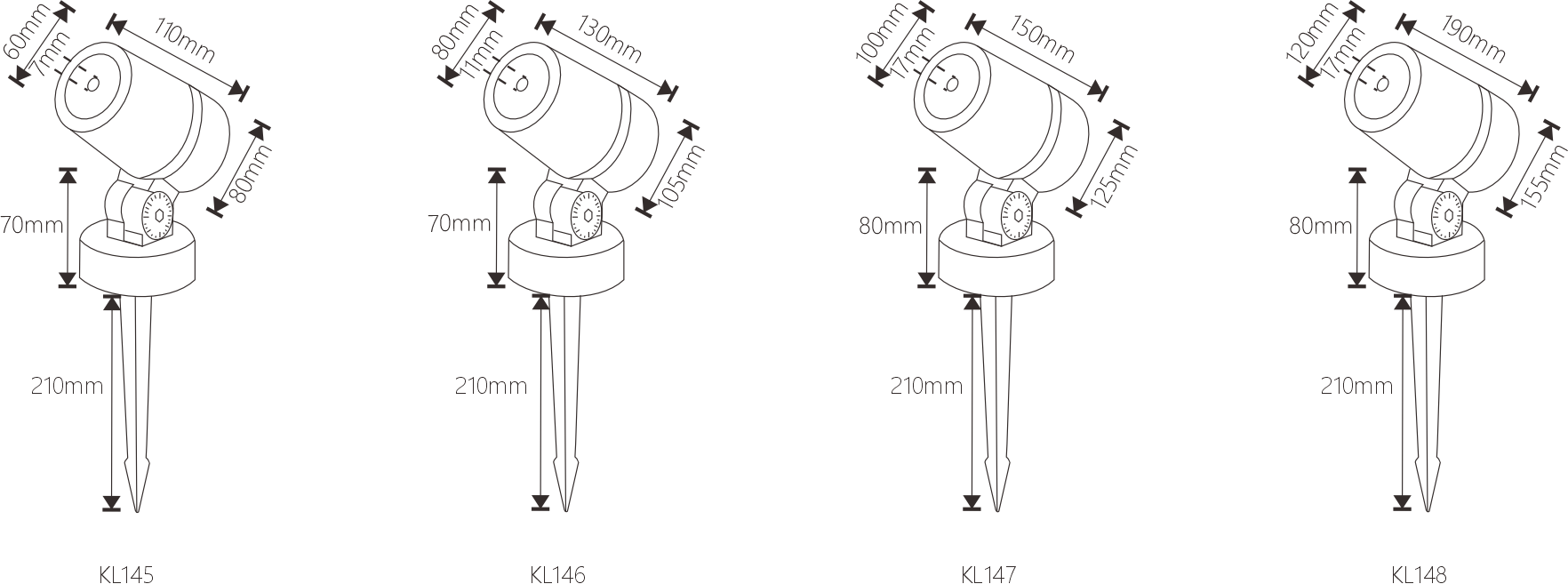

Technical drawing

  • 3.png

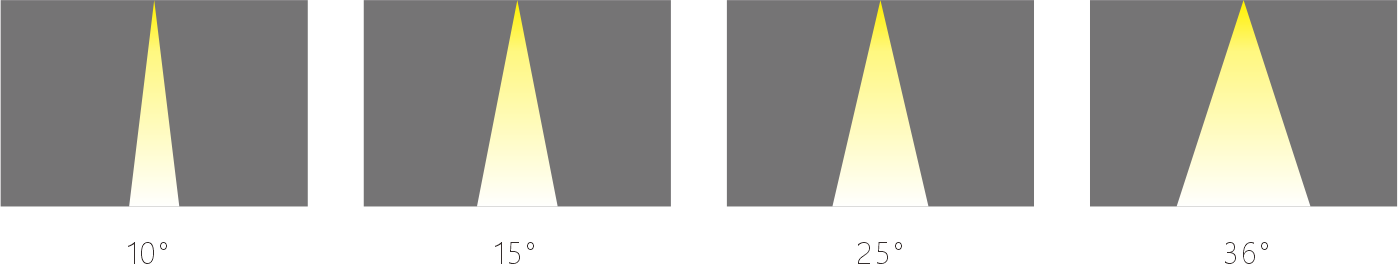

Optical data

POWER 10W /20W /30W /40W
CCT 2700-5000K
BEAM ANGLE -
LIGHT SOURCE LED
LED BRAND Cree /Osram /Philips
LED LIFE 50000h
POWER FACTOR 0.9

  • 4.png

parameter

Model NO.PowerLight Colorluminous flux
WL-KC14510W2700K /3000K /4000K  /5000K700
WL-KC14620W2700K /3000K /4000K  /5000K1400
WL-KC14730W2700K /3000K /4000K  /5000K2100
WL-KC14840W2700K /3000K /4000K  /5000K2800


Other

TEMP. -40° C / +40° C
OPTIONAL VOLTAGE AC 100-240V
MAINS VOLTAGE 24V DC
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Ecodesign and Energy Labelling
