WL-2758
Product Features Size Overview Related Accessories

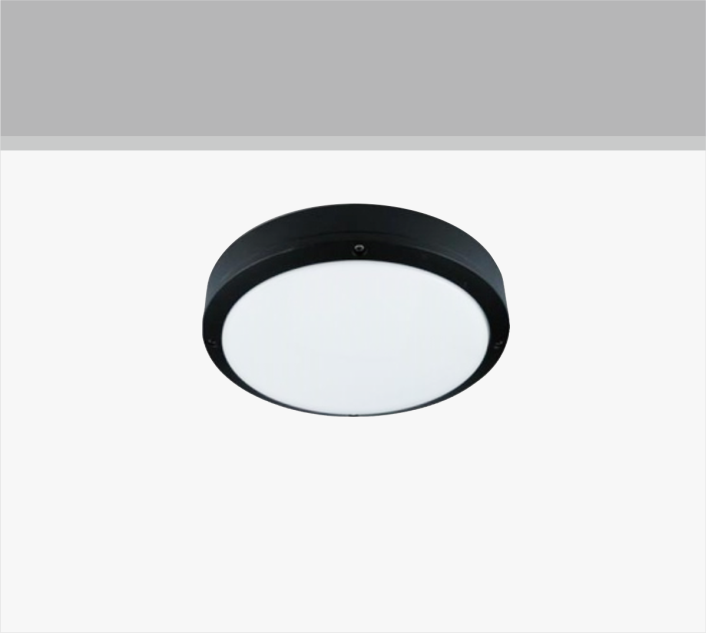

Tri-proof light

Code: WL-2758

Exquisite and simple appearance design, high luminous efficiency, low glare, and flicker-free lighting fixtures.

CCT, CRI and Efficacy can all be customized.

Application: Villas, residences, hotels, restaurants, art galleries, shopping centers, offices and other places.


Product overview

MOUNTING Surface mount
SHAPE Round
ORIENTATION Fixed
IP-RATING IP66
IK-RATING IK03
DIMENSION Ф275 mm
MAIN MATERIAL Aluminm ADC12+PC
CONTROL GEAR Built-in
DIMMING Non-dim
DIMMING OPTION Dali /0-10V /Triac /Triac
OPTIONAL ACC. -
COLOUR (housing) Sand white /Sand Black
Other -

Technical drawing

  • 3.png

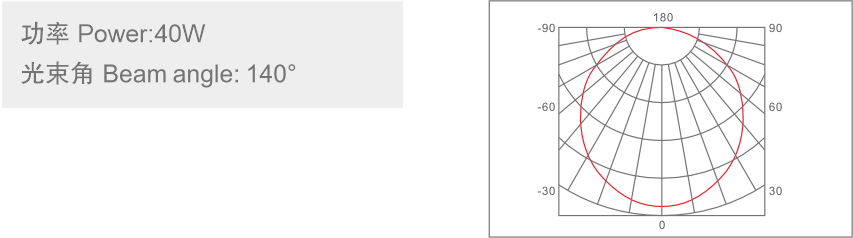

Optical data

POWER 40W /50W
CCT 3000K /4000k /6000k
CRI Ra ≥ 80
BEAM ANGLE 140°
SYSTEM FLUX -
EFFICACY 130 lm/W
LIGHT SOURCE LED
LED BRAND Cree /Luminus /Philips
LED LIFE 50000h
SDCM SDCM≤3
POWER FACTOR 0.9

  • 4.png

parameter

Model NO.PowerCCTSDCMCRILuminous flux
27580140W3000K<3Ra>805200LM
27580240W4000K<3Ra>805200LM
27580340W6000K<3Ra>805200LM
27580450W3000K<3Ra>806500LM
27580550W4000K<3Ra>806500LM
27580650W6000K<3Ra>806500LM


Other

MAINS VOLTAGE AC 220-240V
OPTIONAL VOLTAGE AC 100-240V
FREQUENCY 50/60 Hz
TEMP. -15° C / +40° C
WARRANTY 5 Years
DRIVER OPTION(S) Boke /Tridonic /Eaglerise

Ecodesign and Energy Labelling
